Accord 401U

• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1950–1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30008

• • Brand: Supraphon

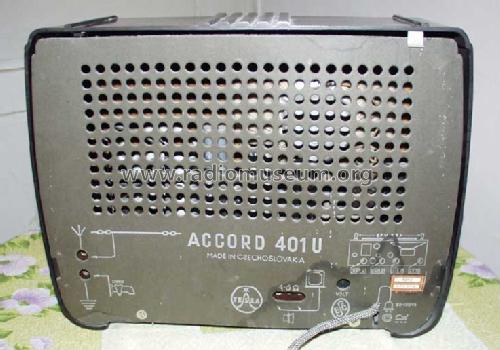

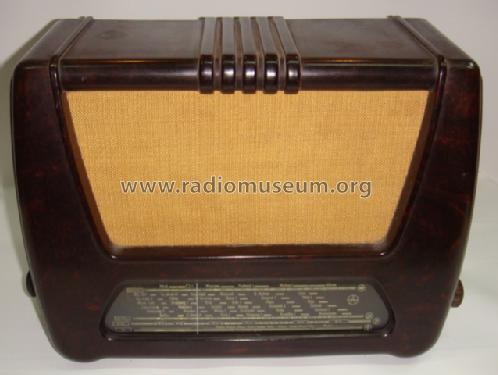

• Picture

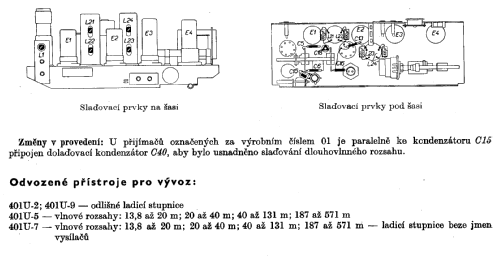

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• AC/DC-set / 120-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Power out
• 2 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Accord 401U - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 380 x 270 x 160 mm / 15 x 10.6 x 6.3 inch

• Notes
• KW 16-51m, 31m-Band; Das gleiche Chassis (mit einigen el.Änderungen + mag Auge EM11) wird im 402U verwendet

• Net weight (2.2 lb = 1 kg)
• 4.6 kg / 10 lb 2.1 oz (10.132 lb)

• Mentioned in
• Ceskoslovenske Rozhlasove a Televizni Prijimace I a II
