• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1975 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 169094

• • Brand: Supraphon

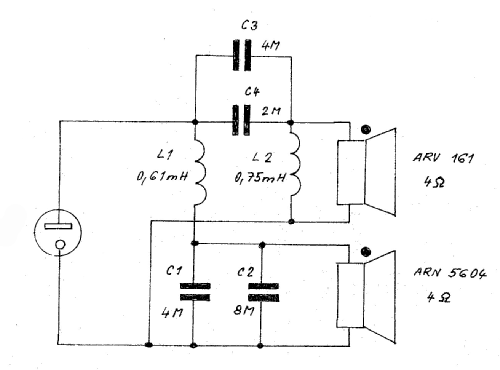

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: ARS-9204 - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 210 x 330 x 216 mm / 8.3 x 13 x 8.5 inch

• Notes
• 15 W power, 4 Ohm input, 63 - 12500 Hz.
  Lautsprecherbestückung: ARN5604 und ARV161.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.
