• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1961–1967

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 91183

• • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF86 EF86 ECC83 ECC83 EM84 ECC83 EL34 EL34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

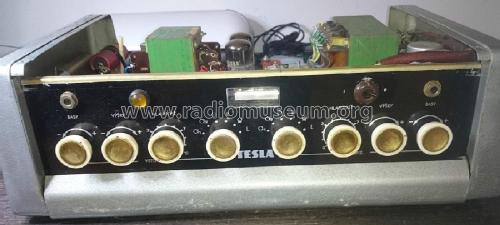

• Model: AZK201 - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 165 x 280 mm / 18.9 x 6.5 x 11 inch

• Notes
• Tischverstärker; Ausgang 1× 15 Ohm, 1× 5 Ohm, Ausgang 1,55 V, 600 Ohm oder 500 Ohm, 100 Volt, 20 Watt, Übertragungsbereich: 40...15000 Hz; Eingänge für piezoelektrischen Tonabnehmer, Tonbandgerät, 2× Mikro, Radio, Echo.

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Price in first year of sale
• 1,820.00 CSK

• Source of data
• Ceskoslovenske Rozhlasove a Televizni Prijimace a Zesilovace

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
