B90 ANP290

• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1973

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 88459

• • Brand: Supraphon

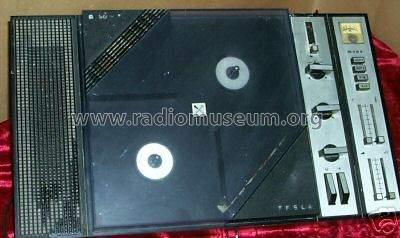

• Picture

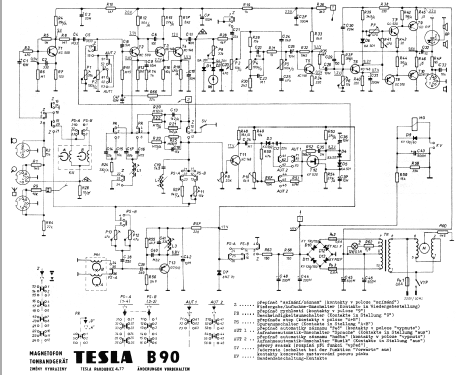

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• KC509 KC508 KC148 GC512 GC510 KF520 GC520 GD607 GD617

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: B90 ANP290 - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 586 x 110 x 340 mm / 23.1 x 4.3 x 13.4 inch

• Notes

• 4-Spur-Mono Tonbandgerät. 2 Geschwindigkeiten: 4,76 und 9,53 cm/s Manuelle und automatische Aufnahmeaussteuerung. Autostop mit Metallkontakt. Freuquenzgang: 50...15000 Hz bei 9,53 cm/s. Bänder bis Spulendurchmesser 18 cm können verwendet werden.

  Jeder Transistortyp nur einmal gelistet.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 925.00 Mark

• Source of data
• -- Original prospect or advert

• Mentioned in
• Magnetofony 2, 1971-1975, Bozdech J. (Sortimentskatalog Elektroakustik (DDR, 1976))

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
