- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1955 ??
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 169833
-
- Brand: Supraphon
- Number of Tubes
- 2
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 120/220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: BS-221 - Tesla; Praha, Bratislava etc.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 490 x 275 x 530 mm / 19.3 x 10.8 x 20.9 inch
- Notes

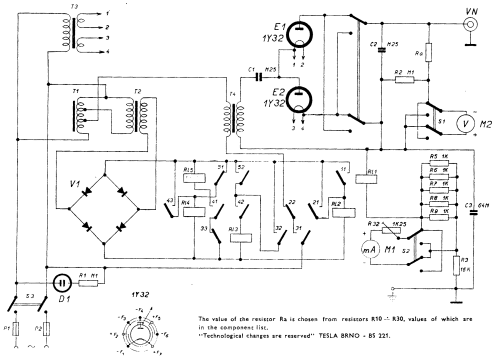

- DC power supply 60 V - 10 kV.
- Net weight (2.2 lb = 1 kg)
- 50 kg / 110 lb 2.1 oz (110.132 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Gabriel Toth. See "Data change" for further contributors.
