Camping 28 4152AB-1
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1967
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 91226
-
- Brand: Supraphon
Front view, working state
Back side without power supply unit.

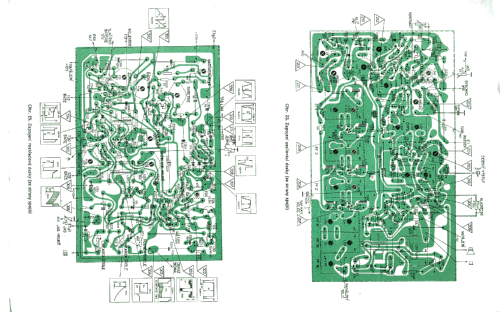

Signal chassis.
Sync chassis.
Channel selector
Original textile protective cover.

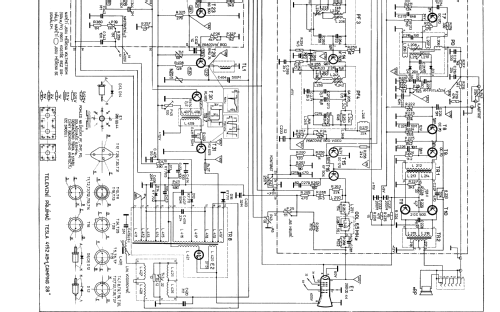

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Number of Transistors
- 31
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 38000 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Line / Batteries (any type) / 220 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 0.75 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Camping 28 4152AB-1 - Tesla; Praha, Bratislava etc.
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Bildröhre 171×228 mm, Empfang OIRT-Norm VHF-Kanäle 1-12.
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
