Distortion Meter with Generator 12XX029
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1955 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 164394
-
- Brand: Supraphon

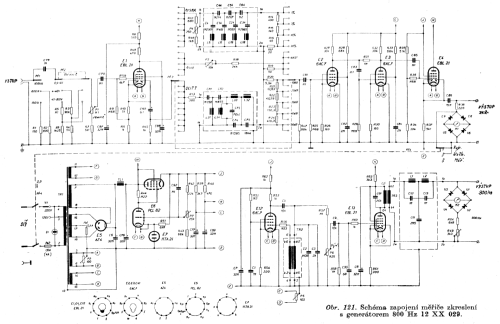

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 120/220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Distortion Meter with Generator 12XX029 - Tesla; Praha, Bratislava etc.
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 495 x 233 x 365 mm / 19.5 x 9.2 x 14.4 inch
- Notes
- Ge diodes: 4× 3NN41. Distortion range: 0,1-30%. Measuring frequency: 800Hz.
- Net weight (2.2 lb = 1 kg)
- 35 kg / 77 lb 1.5 oz (77.093 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Gabriel Toth. See "Data change" for further contributors.
