• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1950 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 136212

• • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6AC7 6AC7 6SA7 6SA7 4654 4654 AZ4 14TA31 14TA31 11TA31 11TA31

• Main principle
• Audio-Amplification

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 3 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

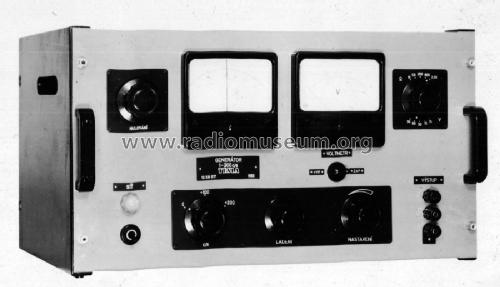

• Model: Generator 12XG017 - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 495 x 278 x 365 mm / 19.5 x 10.9 x 14.4 inch

• Notes
• Low frequency generator in 3 subbands: 1,5-100 Hz, 100-200 Hz, 200-300 Hz.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.

• Other Models

• Here you find 1839 models, 1159 with images and 668 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Tesla; Praha, Bratislava etc.
