Generator of fixed frequencies 12XG019
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1960 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 147255
-
- Brand: Supraphon

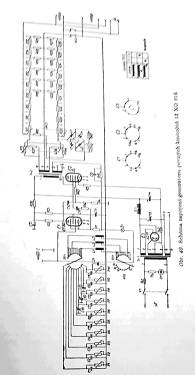

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Generator of fixed frequencies 12XG019 - Tesla; Praha, Bratislava etc.
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 493 x 141 x 365 mm / 19.4 x 5.6 x 14.4 inch
- Notes
- Fixed frequencies: 0,1; 0,2; 0,4; 0,8; 1,6; 3,2; 6,4; 12; 16 and 20kHz.
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Gabriel Toth. See "Data change" for further contributors.
