Lambda V 550010
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1958 ??
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 83922
-
- Brand: Supraphon
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet, double/triple conversion; ZF/IF 2750/468 kHz
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage

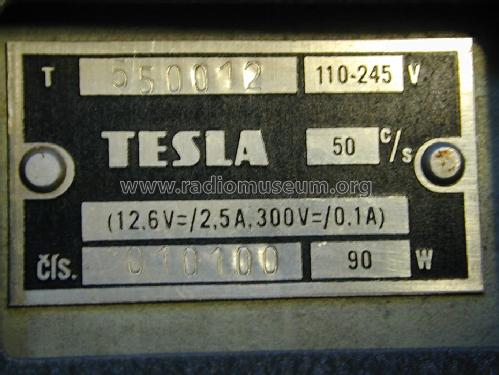

- Line / Storage batteries (perhaps also batteries) / 110 - 245 / 12,6 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Lambda V 550010 - Tesla; Praha, Bratislava etc.
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 490 x 370 x 285 mm / 19.3 x 14.6 x 11.2 inch
- Notes

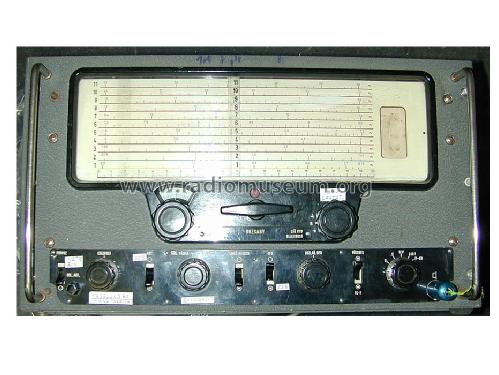

- The Tesla model Lambda V (5) is a communication receiver with turret tuner for 11 frequency ranges. The Lambda V covers 300 kHz to 30 MHz and has VU-meter (S-meter), fine tuning, 2 antenna inputs, BFO, S-meter and one output of 600 ohm for headphones and one for a 5-ohm-loudspeaker. Tubes listed only by types.
Kommunikationsempfänger mit Trommeltuner für 11 Bereiche; ca. von 300 kHz - 30 MHz; 2 Antenneneingänge; Störungsunterdrückung; BFO; S-Meter; Feinabstimmung; 5 Ohm ext. LS-Ausgang und 600 Ohm ext. Kopfhörer-Ausgang (Leitungsausgang).
In hohen Bereichen Dreifachmischung: 1. ZF 2750 kHz, mit Quarz 3218 kHz auf 2. ZF 468 kHz; auch Doppelmischung auf 468 kHz für tiefe Empfangsfrequenzen.
Röhren nur 1× je Typ aufgelistet.
- Net weight (2.2 lb = 1 kg)
- 32 kg / 70 lb 7.8 oz (70.485 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
