Liberator
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 172494
-
- Brand: Supraphon
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 100; 120; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Liberator - Tesla; Praha, Bratislava etc.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 488 x 370 x 258 mm / 19.2 x 14.6 x 10.2 inch
- Notes
- Die Firma Telegrafia baute das bereits 1941 fertig entwickelte Radio in den Jahren 1945 und 1946.
Es wurde nach Eingliederung der Firma Telegrafia in das Nationalunternehmen Tesla ab 10.August 1946 mit der Bezeichnung LIBERATOR TESLA bis Ende 1947 weiterproduziert.
- Literature/Schematics (1)

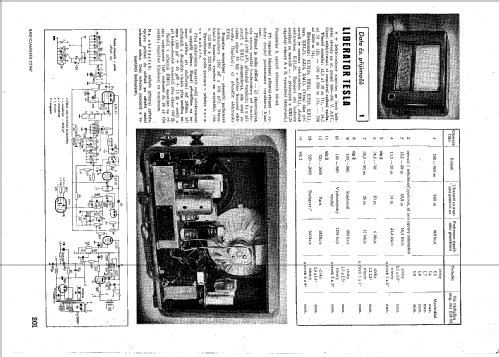

- Radioamater Juli 1947 Seite 201
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
