• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1959/1960

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 76409

• • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 EBF89 ECC85 EABC80 EL84

• Main principle
• Superhet with RF-stage; ZF/IF 468 kHz

• Tuned circuits
• 7 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

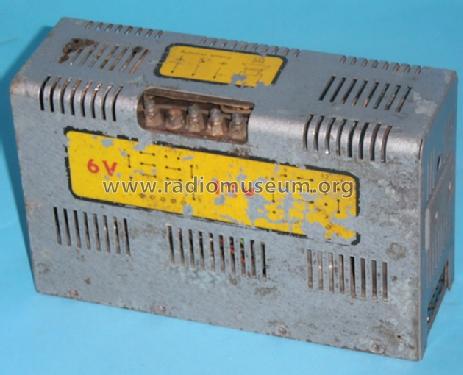

• Model: Luxus 2103 BV - Tesla; Praha, Bratislava etc.

• Shape
• Chassis only or for «building in»

• Notes
• UKW 65,5 - 74 Mhz

• Literature/Schematics (1)
• Ceskoslovenske Rozhlasove a Televizni Prijimace I a II

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
