• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1954 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 354728

• • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 1L34 1L34

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage and/or dry batteries / 1,1-1,4 & 60-120 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Metal case

• from Radiomuseum.org

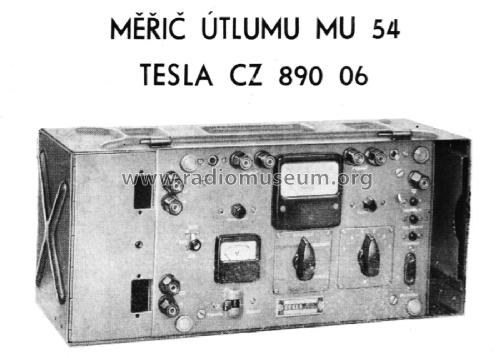

• Model: Měřič útlumu - Attenuation Meter MU54 - CZ89006 - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 450 x 205 x 200 mm / 17.7 x 8.1 x 7.9 inch

• Notes

• Meaurement at frequencies 300; 800 and 2400Hz, measurement range +2 to -5 Np, impedance 600 Ohm.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.
