• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1982

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 110253

• • Brand: Supraphon

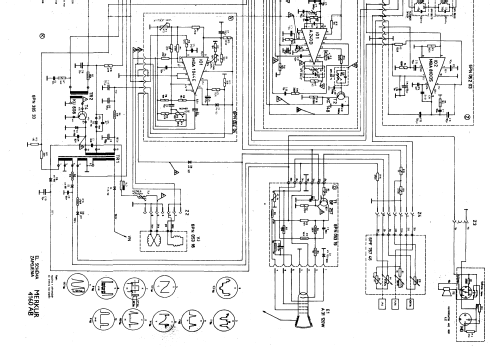

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A31-120W

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Merkur 4160AB - Tesla; Praha, Bratislava etc.

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• 31 cm B/W TV, OIRT VHF/UHF Tuner with 8 preset buttons, also CCIR 5,5 MHz sound.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
