Orient 3102AB

• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30887

• • Brand: Supraphon

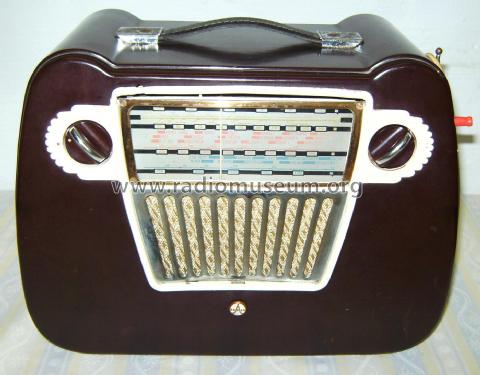

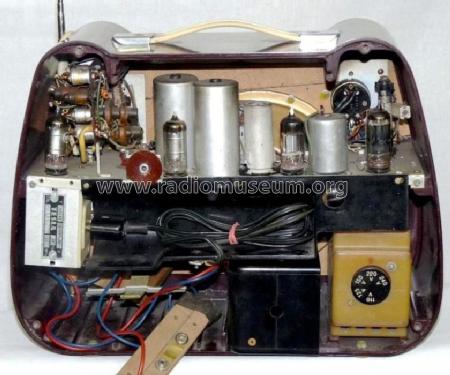

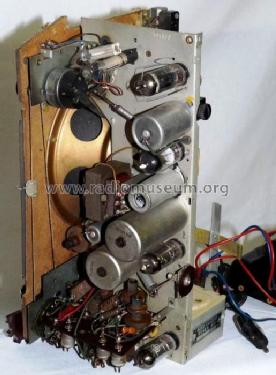

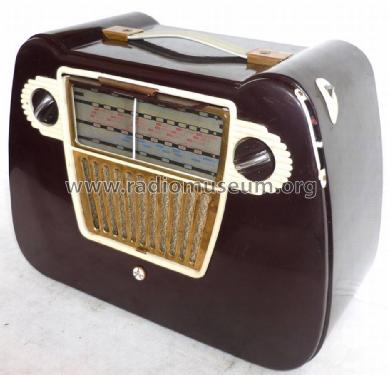

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 3L31 1AF33 1F33 1H35 6Z31

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Line / Batteries (any type) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Power out
• 0.08 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Orient 3102AB - Tesla; Praha, Bratislava etc.

• Dimensions (WHD)
• 330 x 250 x 150 mm / 13 x 9.8 x 5.9 inch

• Notes
• Daten Peter Breu

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Ceskoslovenske Rozhlasove a Televizni Prijimace I a II
