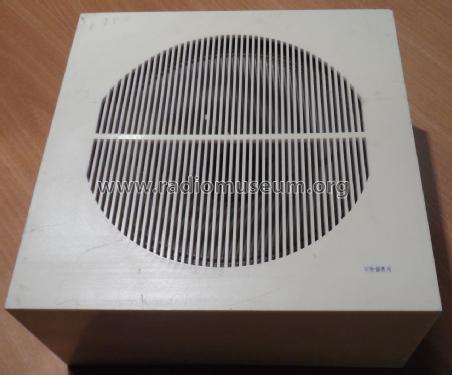

Reproduktor ARS-275
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1977
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 169027
-
- Brand: Supraphon
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 6 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Reproduktor ARS-275 - Tesla; Praha, Bratislava etc.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 231 x 231 x 110 mm / 9.1 x 9.1 x 4.3 inch
- Notes
-
Frequenzbereich: 100 - 10000 Hz.
Eingebauter Lautsprecher ARO 689 mit daten:
- Abmessungen: 203 mm
- Impedanz: 4 Ohm
- Maximale Belastung: 6 W
- Benutzerdefinierte Resonanz: 60-90 Hz
- Frequenzbereich: 60 bis 10 000 Hz
- Die charakteristische Empfindlichkeit: 92 dB
- Net weight (2.2 lb = 1 kg)
- 1.3 kg / 2 lb 13.8 oz (2.863 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Gabriel Toth. See "Data change" for further contributors.
