• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1962

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 77735

• • Brand: Supraphon

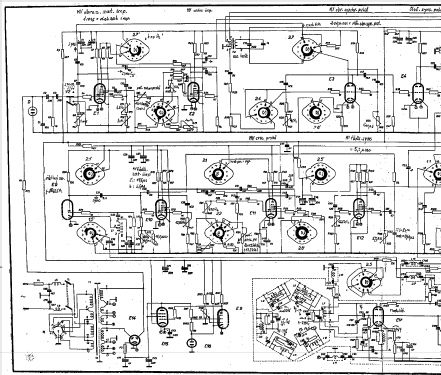

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 120/220 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Signal Generator BM 423 - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 380 x 290 x 220 mm / 15 x 11.4 x 8.7 inch

• Notes
• TV Signal Generator mit Ton und Videosignal.
  Hersteller TESLA Brno.
  Frequenzbereiche: 4-12 MHz und 25-250MHz in 6 Teilbereichen.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
