• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1986/1987

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 192164

• • Brand: Supraphon

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

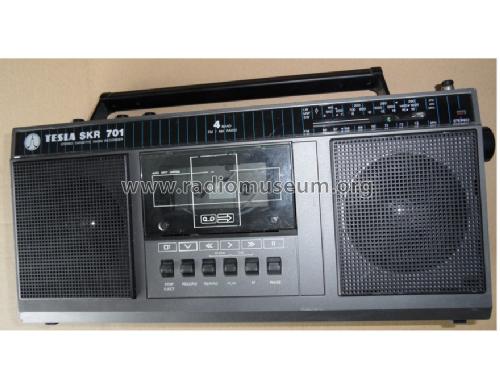

• Model: SKR701 ANP489 OIRT - Tesla; Praha, Bratislava etc.

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 400 x 85 x 185 mm / 15.7 x 3.3 x 7.3 inch

• Notes

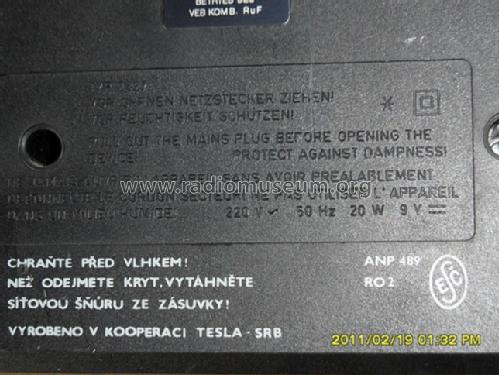

• Erster SKR701, welcher unter dem Markenzeichen TESLA vertrieben wurde. Auf der Rückwand steht in Tschechisch: Hergestellt in Kooperation Tesla SRB und VEB Stern-Radio Berlin, DDR.
  Bis auf den UKW-Tuner ist das Gerät mit dem SKR701 ANP492 baugleich.

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
