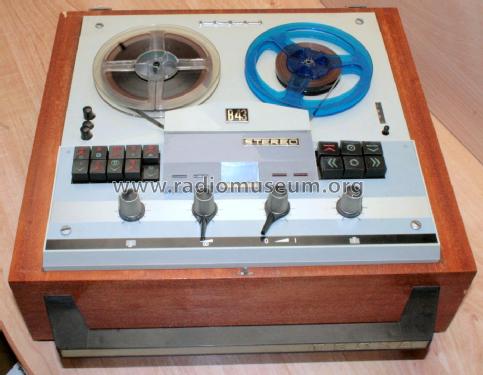

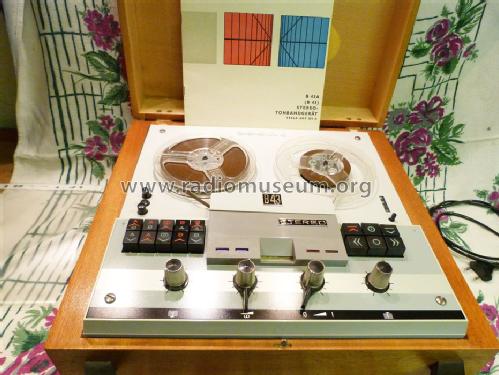

B43-A ANP250A
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1968–1970
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 80921
-
- Brand: Supraphon
www.oldradio.cz B 43
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 24
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 120; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: B43-A ANP250A - Tesla; Praha, Bratislava etc.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 385 x 350 x 170 mm / 15.2 x 13.8 x 6.7 inch
- Notes
- Stereotonbandgerät ohne eingebaute Lautsprecher, jedoch mit Stereoendstufe und Anschlussmöglichkeit separater Lautsprecher 2× 4 Watt, auch als 4-Spur nutzbar. Playback, Multiplayback. Geschwindigkeiten: 4,75, 9,53, 19,05 cm/s; Frequenzgang bei 19,05 cm/s von 50 Hz bis 18000 Hz. Manuelle Aussteuerung, Pegelanzeige für Aufnahme; Regler für Lautstärke, Bass, Höhen. Holzrahmen, Deckel und Oberteil Kunststoff.
- Net weight (2.2 lb = 1 kg)
- 10.5 kg / 23 lb 2 oz (23.128 lb)
- Price in first year of sale
- 4,700.00 Kčs
- Mentioned in
- Magnetofony 1, 1956-1970, Bozdech J. (Funkamateur Jahrgang 1970 Heft 7 Seite 337)
- Literature/Schematics (1)
- Importgeräte- CD vom Funkverlag B. Hein.
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
