Tesla Color 4401A
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1973–1976
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 83910
-
- Brand: Supraphon
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Number of Transistors
- 47
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 38000 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2.2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Tesla Color 4401A - Tesla; Praha, Bratislava etc.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 750 x 542 x 440 mm / 29.5 x 21.3 x 17.3 inch
- Notes
- First CSSR made color TV Set in Standard SECAM IIIb; (Prototype in PAL Standard); 7 Preset VHF/UHF OIRT Standard Tuner also with CCIR Sound 5.5 MHz working.
- Net weight (2.2 lb = 1 kg)
- 46 kg / 101 lb 5.1 oz (101.322 lb)
- Price in first year of sale
- 12,400.00 Kčs
- Source of data
- -- Collector info (Sammler)

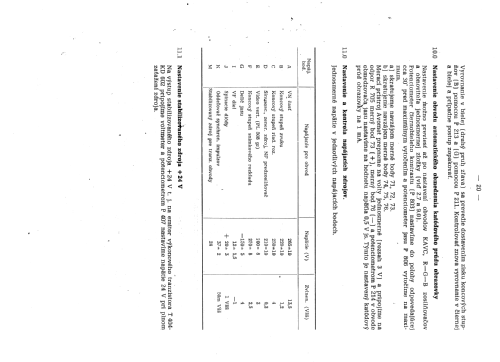

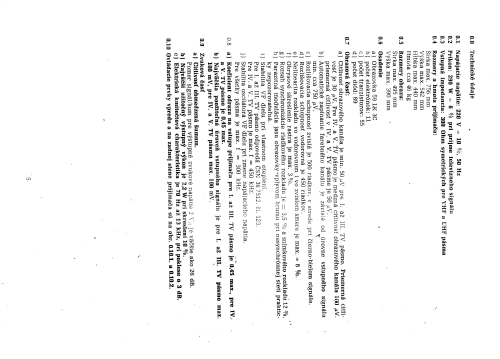

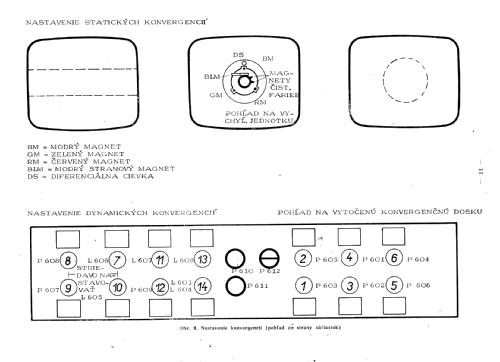

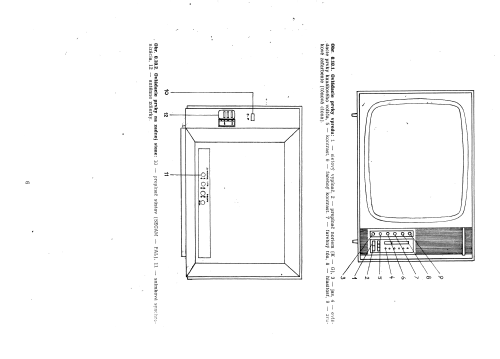

- Literature/Schematics (1)
- Tesla Výrobky spotřební elektroniky 73-74
- Author
- Model page created by a member from A. See "Data change" for further contributors.
