Teslaton 536A-2
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1965–1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 97808
-
- Brand: Supraphon

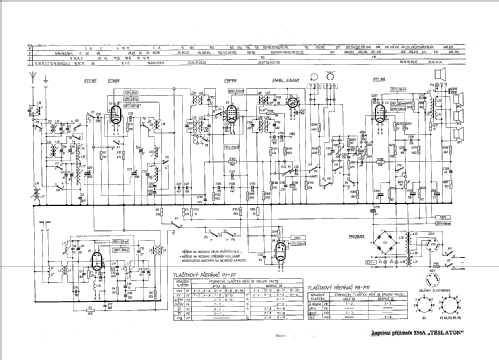

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 120/220 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Teslaton 536A-2 - Tesla; Praha, Bratislava etc.
- Shape
- Tablemodel with Push Buttons.
- Notes
- Exportausführung; CCIR-Band 108 - 87,5 MHZ.
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
