• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 110914

• • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EAA91 EF860 EF860 ECC83 EA52 11TA31 11TA31

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Universal-Voltmeter BM-388 - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 305 x 230 x 182 mm / 12 x 9.1 x 7.2 inch

• Notes
• Wechselspannung: 0,3...300 V, Gleichspannung 0,3...1000 V, Widerstandsmessung ×1 bis ×1000000 Ohm.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (4)

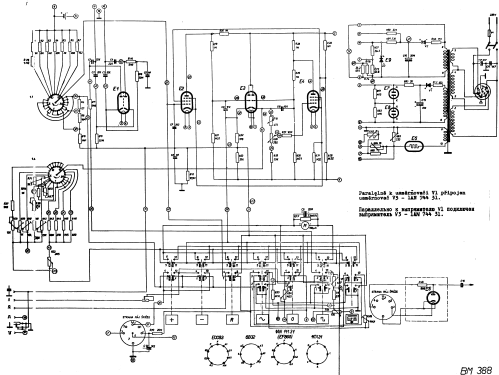

• -- Schematic

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
