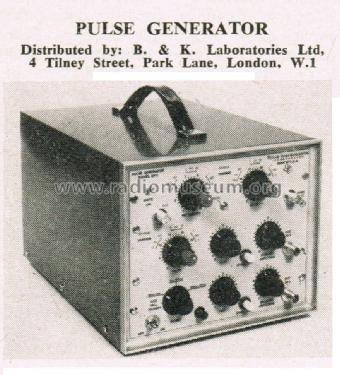

Pulse Generator 6613

Texas Instruments, Dallas

Data
Forum
Pictures
Collections

  • Year
  • 1964 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 345610

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Pulse Generator 6613 - Texas Instruments, Dallas
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 220 x 220 x 300 mm / 8.7 x 8.7 x 11.8 inch
  • Notes

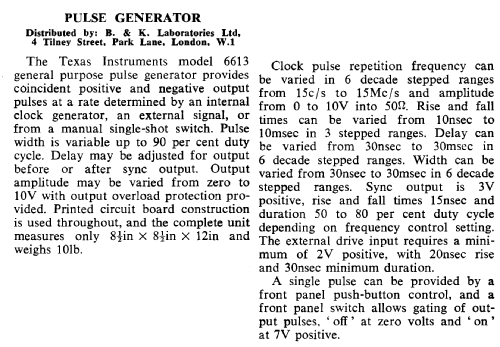

  • This pulse generator provides coincident positive and negative output pulses at a rate determined by an internal clock generator, an external signal or from a manual single-shot switch.

    • Clock pulse repetition frequency can be varied in 6 decade stepped ranges from 15 Hz to 15 MHz.
    • Amplitude can be adjusted from 0 to 10 V into 50 Ω.
    • Rise and fall times can be varied from 10 nsec to 10 msec in 3 stepped ranges.
    • Delay can be varied from 30 nsec to 30 msec in 6 decade stepped ranges.
    • Width can be varied from 30 nsec to 30 msec in 6 decade stepped ranges.
    • Sync output is 3V positive. Rise and fall times 15 nsec.

    All characteristics are much more clearly described in the original attached article.





  • Net weight (2.2 lb = 1 kg)
  • 4.5 kg / 9 lb 14.6 oz (9.912 lb)
  • Mentioned in
  • -- Original-techn. papers. (From “Electronic Engineering”, volume 36, year 1964, November.)
