• Land
• Australien

• Hersteller / Marke
• Thom & Smith Pty. Ltd.(Tasma);Mascot, NSW

• Jahr
• 1937

• Kategorie
• Rundfunkempfänger (Radio - oder Tuner nach WW2)

• Radiomuseum.org ID
• 353886

• • Marke: Tasma

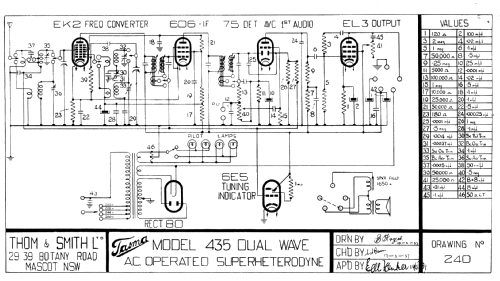

Klicken Sie auf den Schaltplanausschnitt, um diesen kostenlos als Dokument anzufordern.

• Anzahl Röhren
• 6

• Röhren
• EK2 6D6 75 EL3 6E5 80

• Hauptprinzip
• Superhet allgemein; ZF/IF 458 kHz; 2 NF-Stufe(n)

• Anzahl Kreise
• 6 Kreis(e) AM

• Wellenbereiche
• Mittelwelle und Kurzwelle.

• Betriebsart / Volt
• Wechselstromspeisung / 200-260 Volt

• Lautsprecher
• Dynamischer LS, mit Erregerspule (elektrodynamisch) / Ø 8 inch = 20.3 cm

• Belastbarkeit / Leistung
• 4.5 W (Qualität unbekannt)

• Material
• Gerät mit Holzgehäuse

• von Radiomuseum.org
• Modell: Carmen Dual Wave De Luxe 435 - Thom & Smith Pty. Ltd.Tasma;

• Form
• Standgerät auf niedrigen Beinen (Beine < 50 % der Gesamthöhe).

• Bemerkung

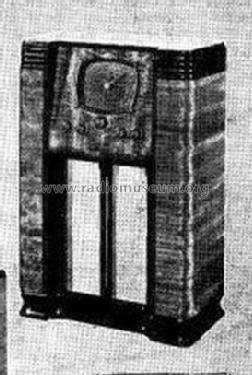

• The new Dual-Wave De Lux model is available in the Homestead cabinet or in the distinctive Carmen.
  The Tasma 435 sets an entirely new price standard for dual-wave receivers. In addition to the broadcast band, all overseas stations from 16-50 metres can be easily tuned. Priced at 28 guineas.

  This receiver is also offered as a Gumnut table model for 22 guineas and the Homestead Console for 28 guineas.

  They incorporate these features.

  SUPER-SIZE 20-INCH EDGELIT GLASS DIAL

  Each scale is acid-etched into the glass, color-filled and floodlit. In addition to this calibrated short-wave scale (on dual wave sets only) ALL THE 103 AUSTRALIAN STATIONS are indicated with hair-line accuracy and unequalled brilliant visibility.

  TWO SEPARATE AND DIFFERENTLY COLOURED TUNING SCALES

  are fitted to Dual Wave Dials. The colour of the lighting changes when you switch from broadcast to short wave, or vice versa. Only ONE scale is visible at one time.

  EXTRA TUNING RANGE

  is now provided at each end of the broadcast band and the short-wave band has been extended to tune from 16 to 60 metres.

  FEATHERLIGHT RAPID-MOMENTUM HIGH-SPEED TUNING CONTROL.

  The swiftest and most accurate tuning equipment ever evolved. The indicator can be swung completely round the dial with one light flick of finger and thumb enabling instantaneous change from one program to another without 'fiddling' or fuss: Yet so perfectly controlled that even the most remote station can be tuned with micrometre accuracy.

  HERMETICALLY SEALED, DUST-PROOF AIR TRIMMER CONDENSERS — NEW IMPROVED FERRO-COIL — OPTIONAL AERIAL TAP and VARIABLE SELECTIVITY

  ensure permanent factory-perfect reproduction even in the most difficult areas, and no matter how close the Tasma owner may live to a powerful broadcasting station. These vital features provide sure safeguard against background hiss, 'jittering,' etc., give EXTRA DAYLIGHT RANGE to the man in the country, and ensure REAL HIGH FIDELITY RECEPTION of all stations.

  SPECIAL DIAL LIGHT SWITCH

  (battery and vibrator sets only) which enables the dial light to be extinguished when the station has been tuned In, thus reducing the drain on the accumulator.

  ELECTRIC EYE

  (for visual tuning: on electric sets only) Is Incorporated IN the dial and can be easily observed without taking up a position directly in front of the set.

  EXTRA VOLUME

  The new Tasma can be tuned from the faintest whisper to full 'dance hall' volume without the slightest suspicion of distortion or whistle. The TONE is so true and flawless that the REALISM of Tasma reproduction creates almost the complete illusion that the artists are in the room itself.

  AUTOMATIC VOLUME CONTROL

   Is an outstanding feature of the new Tasma. And— OF COURSE! — these sets embody the CONTINUOUSLY VARIABLE TONE CONTROL as successfully used by Tasma for the past 3 years.

• Originalpreis
• 28.00 guineas

• Literaturnachweis
• -- Original prospect or advert (Albury Banner & Wodonga Express Aug 13, 1937)

• Autor
• Modellseite von Jack Child angelegt. Siehe bei "Änderungsvorschlag" für weitere Mitarbeit.
