• Country
• Australia

• Manufacturer / Brand
• Thom & Smith Pty. Ltd.(Tasma);Mascot, NSW

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 196662

• • Brand: Tasma

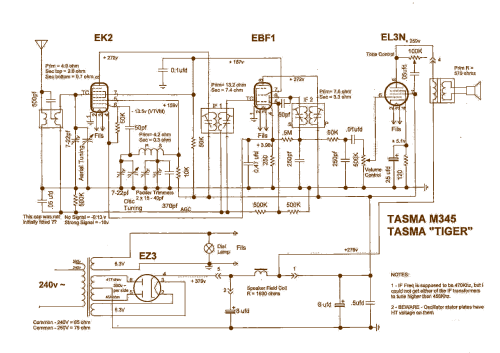

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EK2 EBF1 EL3 EZ3

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tasma Tiger 345 - Thom & Smith Pty. Ltd.Tasma;

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Notes

• Also console version, Democrat 345.

  Speaker field coil 1650 ohms.

• Price in first year of sale
• 16.80 AUS £

• Source of data
• (The) Radio Retailer of Australia

• Mentioned in
• Mingay's "Radio Diagram & I.F. Index (1930-1939 P80.)

• Literature/Schematics (1)
• HRSA Radiowaves October 94, page 19.

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
