Amplificador Estereofónico A-3501
Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid
- Country
- Spain
- Manufacturer / Brand
- Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid
- Year
- 1980 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 318029

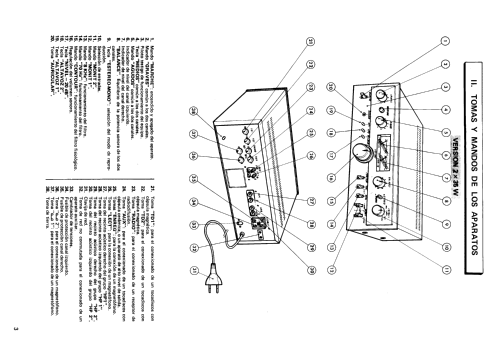

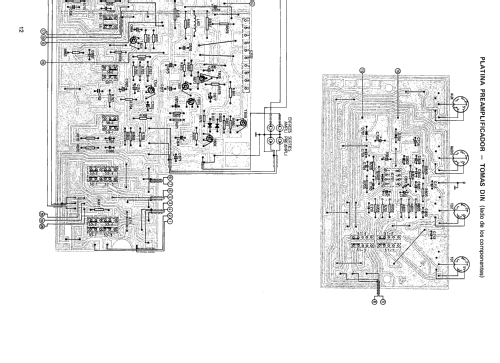

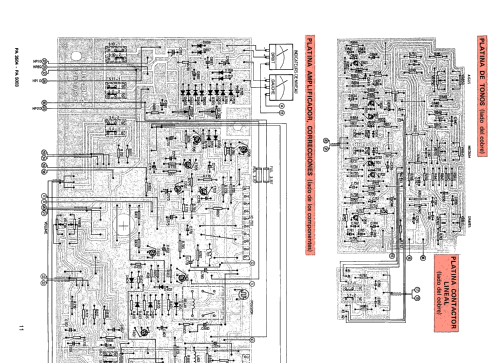

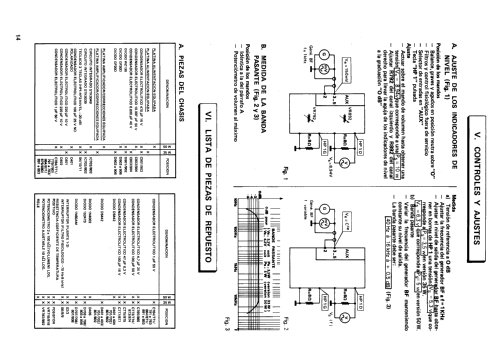

Imagen del manual

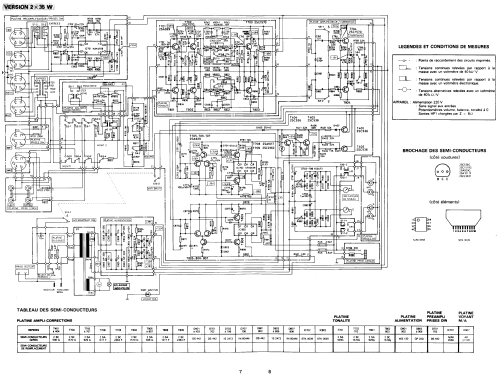

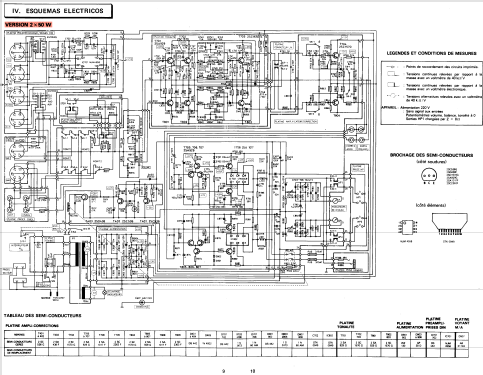

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 22
- Semiconductors
- 2SC536 2SC1570 2SA929 2SA1017 2SC2363 NJM4558 STK0039 DS442 1S2473 1N60 WZ130 GP20D Diode_LED
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 60 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Amplificador Estereofónico A-3501 - Thomson Española S.A.; Thomson
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 440 x 146 x 315 mm / 17.3 x 5.7 x 12.4 inch
- Notes
-
Thomson Española S.A. Preamplificador Amplificador Estereofónico A-3501
Véase también (modelos con misma apariencia externa):
- Nordmende PA-1100 (2 x 35 W)
- Thomson Española, S.A. A-5001 (2 x 50 W)
- Nordmende PA-1200 (2 x 50 W)
Listado un único semiconductor por tipo
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
