Cassette Deck Estereofónico CD-303
Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid
- Country
- Spain
- Manufacturer / Brand
- Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid
- Year
- 1980 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 317900

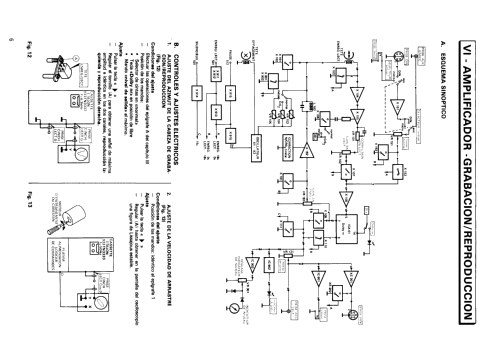

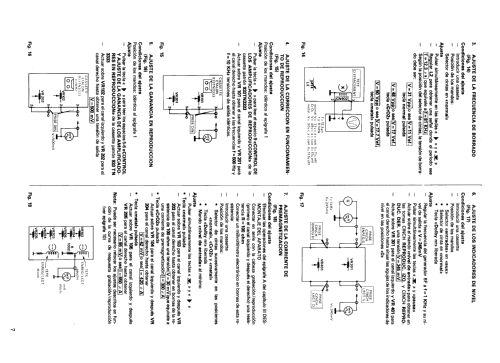

Imagen del manual

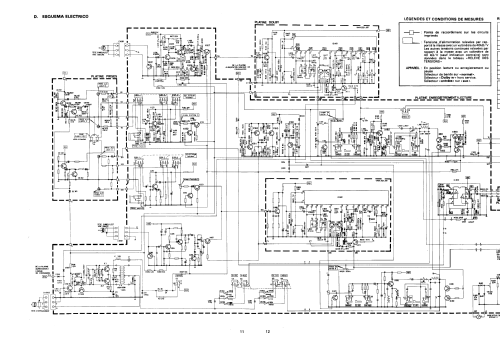

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 46
- Semiconductors
- 2SC1685 2SC1980 2SC1684 2SC1327 2SA921 2SA564 LB1416 µPC4557C LM1011 10E1 OA90 MA150 RD6.8E TLR102
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player; Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Cassette Deck Estereofónico CD-303 - Thomson Española S.A.; Thomson
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 440 x 120 x 300 mm / 17.3 x 4.7 x 11.8 inch
- Notes
-
Thomson Española S.A. Cassette Deck Estereofónico CD-303
- Para cintas de hierro, cromo y metal
- Toma para Telemando TC-100 ó TC-1000
Listado un único semiconductor por tipo.
- Net weight (2.2 lb = 1 kg)
- 6.8 kg / 14 lb 15.6 oz (14.978 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
