Compacto Estereofónico TC-1001

• Country
• Spain

• Manufacturer / Brand
• Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid

• Year
• 1981 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 318252

• Picture

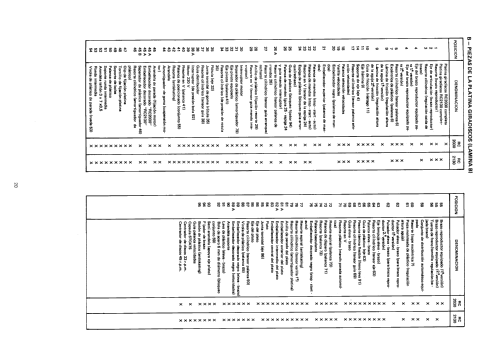

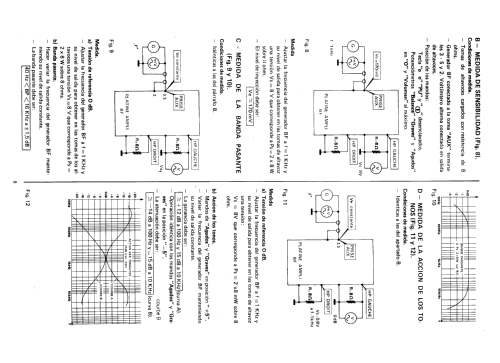

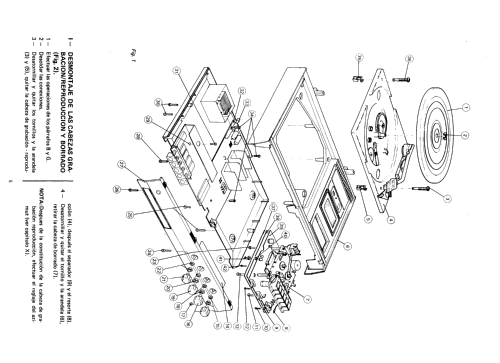

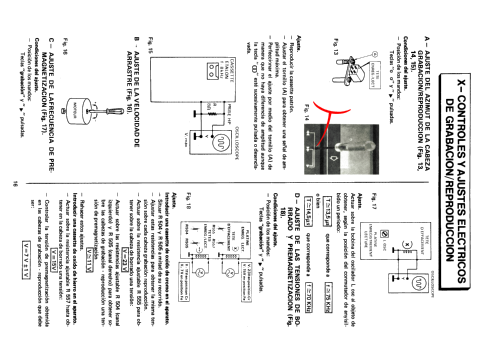

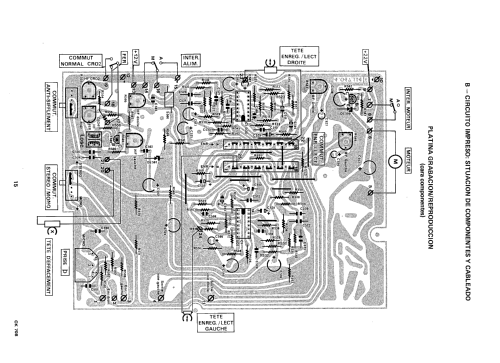

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors
• BC413 BC307 BC337 BC238 BDX53 BDX54 BC337-25 BC485 TDA1412 TDA1054 1N4001 BZX46

• Main principle
• Audio-Amplification; ZF/IF 459/10700 kHz

• Wave bands
• - without

• Details
• Changer + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 16 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Compacto Estereofónico TC-1001 - Thomson Española S.A.; Thomson

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 108 x 298 mm / 16.5 x 4.3 x 11.7 inch

• Notes

• Thomson Española, S.A. Compacto Estéreofónico TC-1001

  Compuesto por:

  • Platina tocadiscos
    • cambia discos automático tipo AC-2030 o AC-2031 para 33 y 45 rpm.
    • Cápsula STC-47S con aguja de zafiro
  • Grabador-reproductor de cassettes para cintas de hierro o de cromo.
  • Amplificador de potencia de 2 x 8 W @ 8Ω.
  • Mueble compacto para lo anterior con un peso de 8,3 kg.
  • 2 Bafles de 275 x 400 x 150 mm y 4,1 kg. cada uno.

  Listado un único semiconductor por tipo.

• Net weight (2.2 lb = 1 kg)
• 16.5 kg / 36 lb 5.5 oz (36.344 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
