• Country
• Spain

• Manufacturer / Brand
• Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid

• Year
• 1981

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 318266

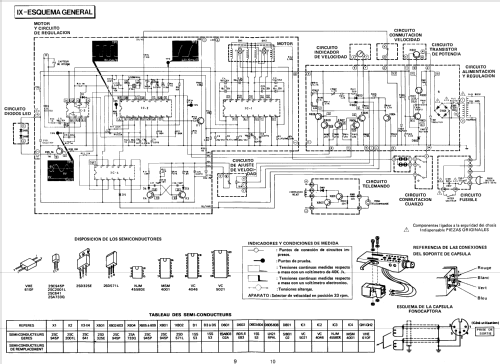

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• 2SC945 2SC2001 2SC641 2SA733 2SD325 2SD571 NJM4558 CD4001 VC4046 VC5021 1SS83 ESAB03-02 RD5.6EB

• Main principle
• ZF/IF 459/10700 kHz

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 16 W (12 W max.)

• Material
• Various materials

• from Radiomuseum.org
• Model: Platina Tocadiscos TQ-404 - Thomson Española S.A.; Thomson

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 438 x 143 x 370 mm / 17.2 x 5.6 x 14.6 inch

• Notes

• Thomson Española, S.A. Platina Tocadiscos TQ-404

  • Cápsula tipo AT-12XE con aguja ATN-12XE elíptica
  • Conexión para Control Remoto (Telemando)

  Listado un único semiconductor por tipo.

• Net weight (2.2 lb = 1 kg)
• 6.7 kg / 14 lb 12.1 oz (14.758 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

• Other Models

• Here you find 178 models, 82 with images and 108 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid
