- Country
- Spain
- Manufacturer / Brand
- Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid
- Year
- 1986 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 316369

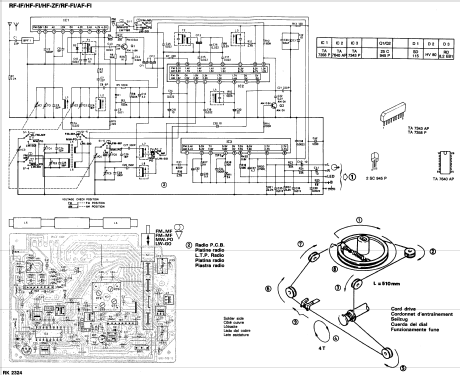

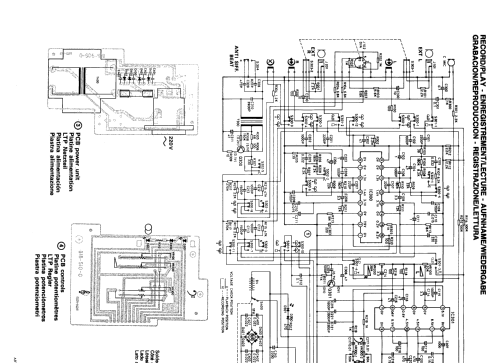

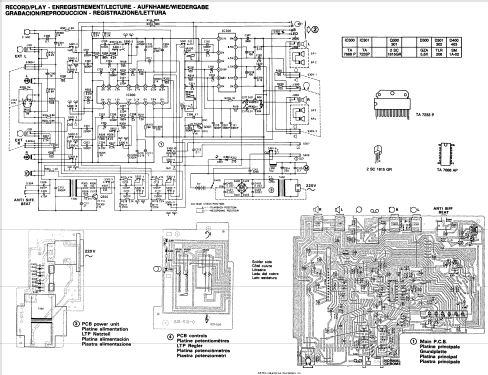

Imagen del manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 4
- Main principle
- ZF/IF 460/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220 / C: 6 x 1,5 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 3.6 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: RK-2324 - Thomson Española S.A.; Thomson
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 440 x 138 x 150 mm / 17.3 x 5.4 x 5.9 inch
- Notes
-
Thomson Española S.A. Radio Cassette Estéreo RK-2324 (RCP-620)
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
