Sintonizador Estereofónico Digital T-1301

• Country
• Spain

• Manufacturer / Brand
• Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid

• Year
• 1984 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 317737

• Picture

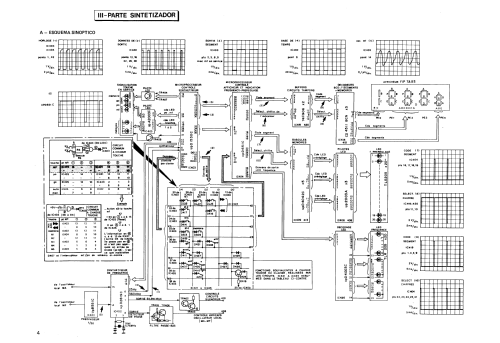

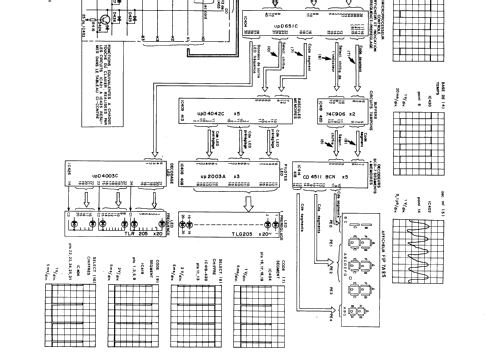

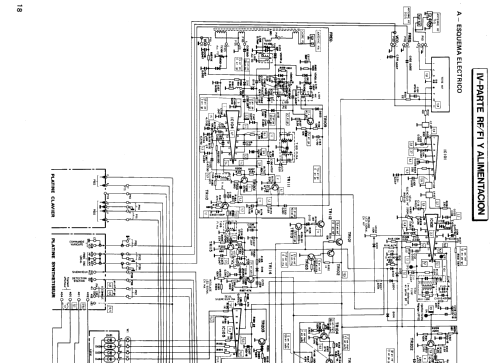

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• µPD1530 µPD651C µPB551 µPD2819C µPD1530 µPA2003 CD4042 CD4511 SN74C906 CD4081 CD4043 µPD4003 µA78M05 TA7302 µPC1167 µPC1161C µPC1197 MC1458 M51903

• Main principle
• PLL, Phase-locked loop; ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: Sintonizador Estereofónico Digital T-1301 - Thomson Española S.A.; Thomson

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 60 x 320 mm / 17.3 x 2.4 x 12.6 inch

• Notes

• Thomson Española S.A. Sintonizador Estereofónico Digital T-1301

  Forma conjunto con

  • Amplificador       AP-1301
  • Cassette Deck   PC-1301W

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

• Other Models

• Here you find 178 models, 82 with images and 108 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid
