• Year
  • 1975 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 317451

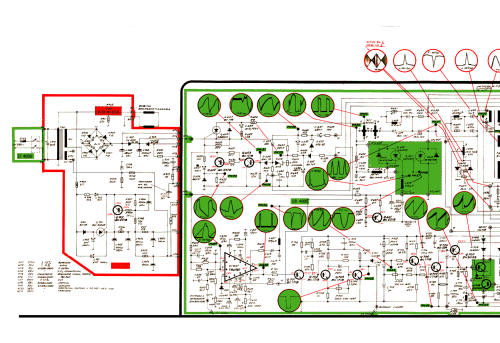

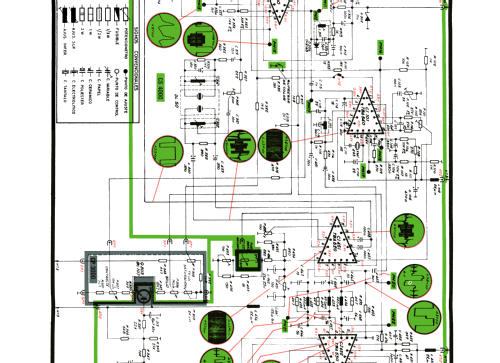

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • 31
  • Semiconductors
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Thomson-General Eléctrica 27C5 Ch= C40 - Thomson Española S.A.; Thomson
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Thomson Española S.A. Televisor color 27C5 Ch= C40

    TV color con TRC de 27"

    Sintonizador de VHF/UHF Copresa ELC2000S con seis presintonías por sensores.

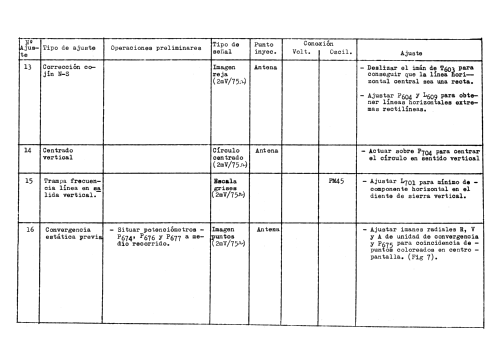

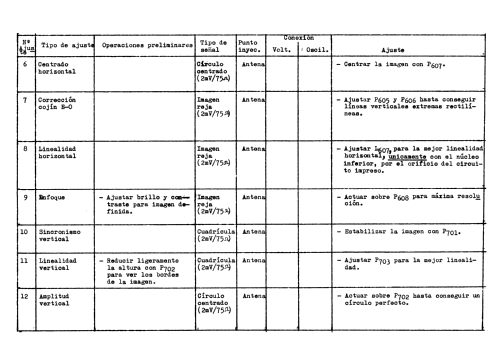

    Véanse en la ficha general del chasis Ch= C40 las Notas de Servicio.

    Altavoz elíptico de 5" x 7"

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
