• Country
• United States of America (USA)

• Manufacturer / Brand
• Thordarson Electric Mfg. Co. ; Chicago (IL)

• Year
• 1938/1939

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 183706

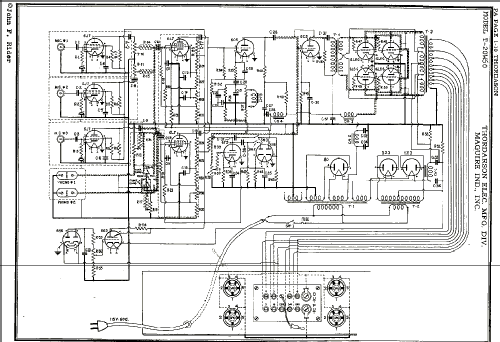

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6J7 6J7 6J7 6L7 6L7 6C5 6C5 6F5 6G5 6H6 6L6 6L6 6L6 6L6 80 5Z3 5Z3

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: T-20W60 - Thordarson Electric Mfg. Co. ;

• Shape
• Chassis only or for «building in»

• Literature/Schematics (1)
• Radio Retailing (Radio & Television R.) (ad January 1939 page 53)

• Author
• Model page created by Hannes Gerber. See "Data change" for further contributors.
