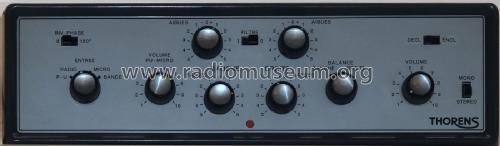

Stereo-Verstärker PR24 (RP-24)
Thorens SA; St. Croix
- Country
- Switzerland
- Manufacturer / Brand
- Thorens SA; St. Croix
- Year
- 1962
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 74187
-
- alternative name: Thorens Inc., N.Y.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo-Verstärker PR24 - Thorens SA; St. Croix
- Dimensions (WHD)
- 400 x 125 x 295 mm / 15.7 x 4.9 x 11.6 inch
- Net weight (2.2 lb = 1 kg)
- 13.5 kg / 29 lb 11.8 oz (29.736 lb)
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by Gerald Janisch † 16.11.17. See "Data change" for further contributors.
- Other Models
-
Here you find 223 models, 195 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Thorens SA; St. Croix
Collections
The model Stereo-Verstärker is part of the collections of the following members.
Forum contributions about this model: Thorens SA; St.: Stereo-Verstärker PR24
Threads: 1 | Posts: 10
Hi
I have a THorens PR-24 which is unfortunately missing an output transformer . My tech is having a little trouble with the circuit diagram and cannot locate the Primary or seconday impedance details for the output transformer ( ultralinear push pull) . I am keen to get the amp up and running but require these datils so I can get a repalcement pair ( preferably orig) . Any assistance is greatly appreciated. I never thought I would see this amp in Australia...I only dreamed of having it to match my TD -124.So I have it now its looking pretty sad at present....thanks from Australia...Kevin
Kevin Blyth, 23.Jun.12
