• Country
• Switzerland

• Manufacturer / Brand
• Thorens SA; St. Croix

• Year
• 1985 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 238883

• • alternative name: Thorens Inc., N.Y.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Powered by external power supply or a main unit. / AC 17 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

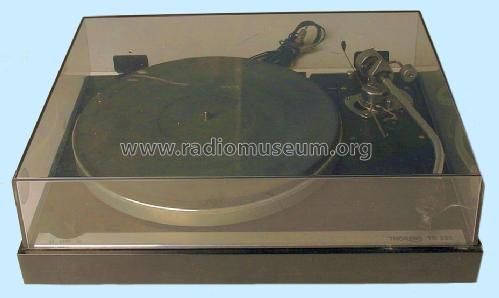

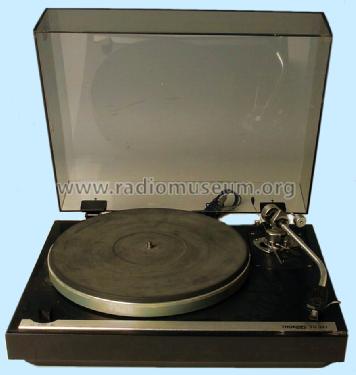

• Model: TD 321 - Thorens SA; St. Croix

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 440 x 170 x 350 mm / 17.3 x 6.7 x 13.8 inch

• Notes

• Halbautomat mit Riemenantrieb und 2 Geschwindigkeiten (33 und 45 UpM).
  Plattenteller Ø 300mm, 3,1 kg.
  Tonarm TP16 MK IV.

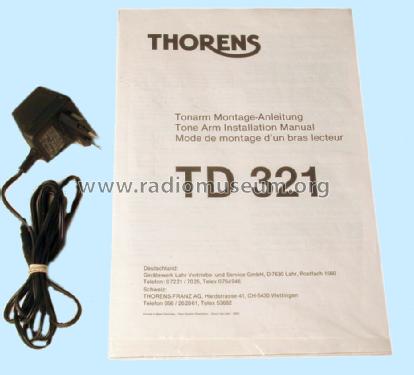

  Stromversorgung: 17 VAC Steckernetzteil.

  Unterschied zum TD 320: Beim TD 321 dient der Drehknopf zur Geschwindigkeitswahl gleichzeitig zum Einschalten des Gerätes, der TD 320 hat einen separaten Startknopf.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by a member from D. See "Data change" for further contributors.
