Imp 5533 Ch= Schedule S-1
Thorn Electrical Industries (Aust.) Pty Ltd, Victoria
- Country
- Australia
- Manufacturer / Brand
- Thorn Electrical Industries (Aust.) Pty Ltd, Victoria
- Year
- 1970–1974
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 305749
From service manual.
- Number of Tubes
- 8
- Number of Transistors
- 13
- Semiconductors
- BC158 BC148 BF196 BF196 BF194 BF197 BF194 BC147 BF178 BC148 2N699 BF194 2N4121 OA90 OA91 AA119 AA119 BY126 BY126 BY126 BY126 BY126 OA91
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 210-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- from Radiomuseum.org
- Model: Imp 5533 Ch= Schedule S-1 - Thorn Electrical Industries
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 15 x 11.25 x 11 inch / 381 x 286 x 279 mm
- Notes
-

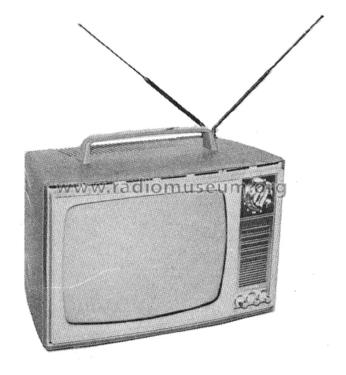

12" portable TV.
- Net weight (2.2 lb = 1 kg)
- 20 lb 8 oz (20.5 lb) / 9.307 kg
- Price in first year of sale
- 240.00 AUS $
- Literature/Schematics (1)
- - - Manufacturers Literature (Service Manual.)
- Literature/Schematics (2)
- Group G14, April 1971, Page A128.
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
