• Country
• Australia

• Manufacturer / Brand
• Thorn Electrical Industries (Aust.) Pty Ltd, Victoria

• Year
• 1961–1964

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 285494

• Number of Tubes
• 16

• Valves / Tubes
• 6FC7 6BL8 6EH7 6EH7 6BL8 6DX8 6BL8 6BX6 6BM8 6BL8 6BM8 12AU7 6CM5 6AL3 6S2 unknown_CRT

• Number of Transistors

• Semiconductors
• OA79 OA79 OA79 OA81 OA81 OA210 OA210

• Main principle
• Superhet with RF-stage; ZF/IF 36000/30500 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

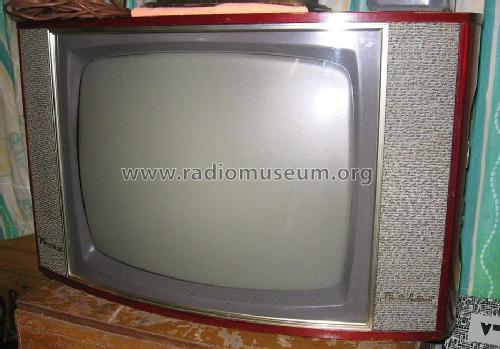

• Model: Thorn Atlas 2209J Ch= Schedule J - Thorn Electrical Industries

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• This 23 inch 110 degree television tuned the standard 13 Australian VHF channels.

• Price in first year of sale
• 183.75 AUS £

• Mentioned in
• Mingay's Price Service (Aug 1961 to Feb 1964.)

• Literature/Schematics (1)
• -- Original-techn. papers. (Thorn-Atlas Service Manual, Schedule J.)

• Literature/Schematics (2)
• J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & 1967, Page A117.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
