Thorn-Atlas (Ferguson) 3208

Thorn Electrical Industries (Aust.) Pty Ltd, Victoria

Data
Forum
Pictures
Collections

  • Year
  • 1966–1968
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 334035

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 3 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Thorn-Atlas 3208 - Thorn Electrical Industries
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 12.5 x 12 x 6.5 inch / 318 x 305 x 165 mm
  • Notes

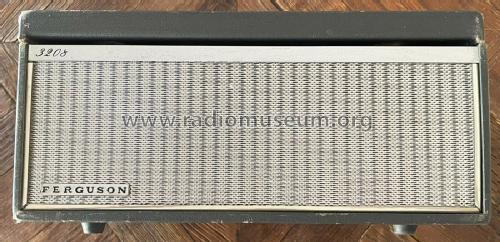

  • Thorn-Ferguson 3208 Tape Recorder

    Features two-speed, four-track deck having a playing time of 12 hours on double play tape, Rewind time 21 minutes either direction. Power output 3 watts. The push-button deck features the following controls: volume/recording level, tone combined with mains on/off switch, tape motion keys which are play/record, pause (temporary stop), fast forward, fast rewind, stop. Record button (interlocked with tape motion keys), play through/superimpose button, track selector push-buttons (on head cover). Speed controls 1 and 3. Tape position indicator, reset buttons.

    Sockets, inputs: microphone (1.5V into 10 MΩ), Radio (1.5V into 22 kΩ. Pick-up (75 mV into 10 MΩ).

    Outputs: radio or amplifier output (500mV into 22 kΩ), External loudspeaker (3W at 3Ω). Accessories provide power for translator units.

    See also Ferguson 3208.

  • Net weight (2.2 lb = 1 kg)
  • 19 lb 0 oz (19 lb) / 8.626 kg
  • Price in first year of sale
  • 136.00 AUS $
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
