• Country
• Japan

• Manufacturer / Brand
• Tiger Electric

• Year
• 1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99683

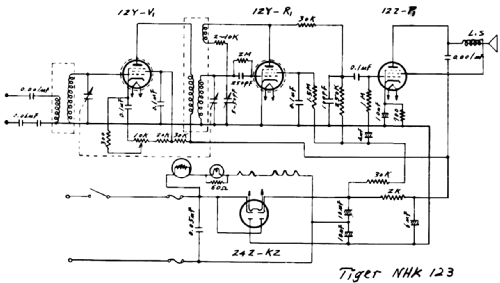

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12Y-V1 12Y-R1 12Z-P1 24Z-K2

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 100 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: NHK-123 - Tiger Electric

• Shape
• Tablemodel, low profile (big size).

• Notes
• Nationale Standardschaltung Nr. 123 der Rundfunkgesellschaft NHK. Kategorie "Trafolose Radios" (Materialersparnis).

• External source of data
• NHK Broadcasting Museum; K. Hayashi

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Berthold Bosch † 13.2.19. See "Data change" for further contributors.
