Three-Valve Receiver
Tingey Wireless, W.R.H. Tingey; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Tingey Wireless, W.R.H. Tingey; London
- Year
- 1921
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 313400
- Number of Tubes
- 3
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: Three-Valve Receiver - Tingey Wireless, W.R.H. Tingey
- Shape
- Tablemodel, slant panel.
- Notes
-

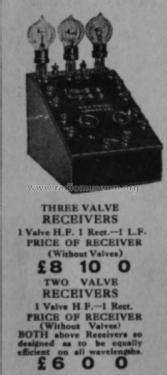

Tingey Three-Valve Receiver
1 valve H.F. , rectifier, 1 valve L.F.
- Mentioned in

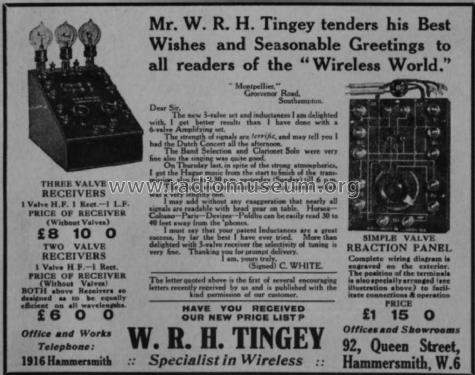

- Wireless World (The), London (WW, 79) (December 10, 1921 The Wireless World magazine front cover)
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
