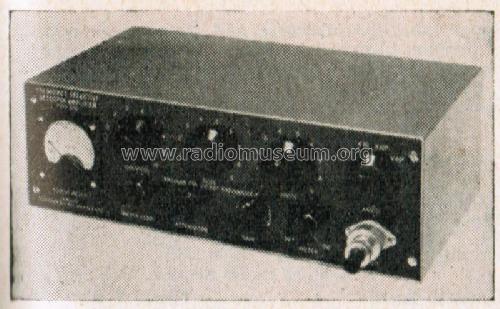

Frequency Selective Amplifier 5710
Tinsley & Co. Ltd., H.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Tinsley & Co. Ltd., H.; London
- Year
- 1965 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 329278
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Dry Batteries
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Frequency Selective Amplifier 5710 - Tinsley & Co. Ltd., H.; London
- Dimensions (WHD)
- 12 x 4 x 8.5 inch / 305 x 102 x 216 mm
- Notes
-
An instrument for uses where measurements are required at a number of frequencies.
Input signals from 0.1µV to 10V, covering a tunable frequency from 10Hz to 100kHz in four ranges. Three stages of amplification are incorporated providing voltage gains of the order of 106.
- Net weight (2.2 lb = 1 kg)
- 5 lb (5 lb 0 oz) / 2.270 kg
- Mentioned in
- -- Original prospect or advert (Electronic Engineering, volume 37 year 1965)
- Literature/Schematics (1)
- -- Original prospect or advert (Wireless World April 1965 page 177)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
