• Country
• Australia

• Manufacturer / Brand
• K.G.H. Pty., Ltd. (Titan); Bondi Junction, Sydney, NSW

• Year
• 1952–1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 193008

• • alternative name: K.G.H Pty. Ltd. (KGH), Bondi Junction, Sydney

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6AN7 6N8 6N8 6M5 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

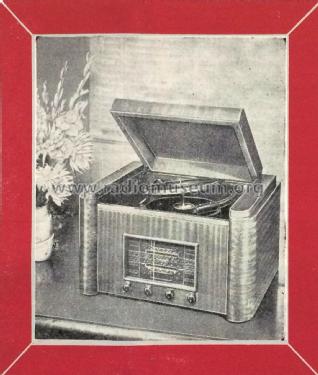

• Model: Titan Corinthian TW3 - K.G.H. Pty., Ltd. Titan; Bondi

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 22.75 x 17.75 x 14 inch / 578 x 451 x 356 mm

• Notes

• Dual-wave tablegram with 3-speed record changer.

  See also single speed version, Model TW.

• Price in first year of sale
• 68.25 AUS £

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. XI

• Literature/Schematics (1)
• Australian Official Radio Service Manual AORSM (Volume 11, 1953, Page 310.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
