• Country
• Japan

• Manufacturer / Brand
• TMK, Tachikawa Radio; Miyatani

• Year
• 1988 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 299143

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / AA: 2 x 1.5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

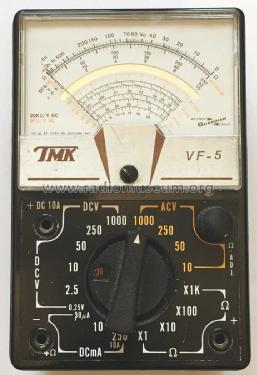

• Model: VF-5 - TMK, Tachikawa Radio; Miyatani

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 96 x 45 x 147 mm / 3.8 x 1.8 x 5.8 inch

• Notes

• Multimeter Flachgehäuse

  DCV 20kΩ/V: 0,25-2.5-10-50-250-1000V
  ACV 9kΩ/V:  10-50-250-1000V
  DC current:    50μ-10m-250m-10A
  Resistance:   63Ω mid scale x1-x10-x100-x1k

  Hersteller Future Elec.

• Net weight (2.2 lb = 1 kg)
• 0.350 kg / 0 lb 12.3 oz (0.771 lb)

• Author
• Model page created by Marc Gianella. See "Data change" for further contributors.
