• Country
• Japan

• Manufacturer / Brand
• Toa Electric Co., Ltd. 東亜; Kobe

• Year
• 1988 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 240157

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Line / Batteries (any type) / 220; 240 / 24 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 120 W (180 W max.)

• Material
• Metal case

• from Radiomuseum.org

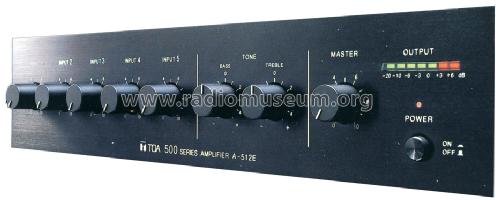

• Model: Mixer Power Amplifier A-512E - Toa Electric Co., Ltd. 東亜;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 88.5 x 280 mm / 16.5 x 3.5 x 11 inch

• Notes

• ELA-Mischverstärker. 4 regelbare Mikroeingänge 0,5mV, Summensteller, getrennte Höhen und Tiefensteller, LED Aussteuerungsanzeige. Ausgang wahlweise 4 Ohm, 50V/70V/100V. Ungewöhnliche Endstufe in Collektorschaltung.

• Net weight (2.2 lb = 1 kg)
• 10.1 kg / 22 lb 3.9 oz (22.247 lb)

• Mentioned in

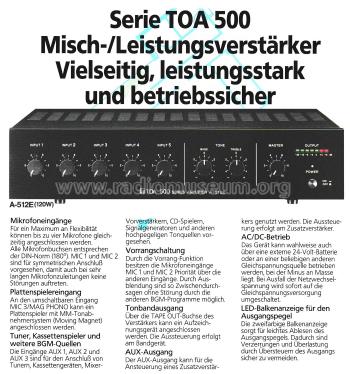

• Funkschau (23/1988, S. 13 / Werbeanzeige, 500er Serie)

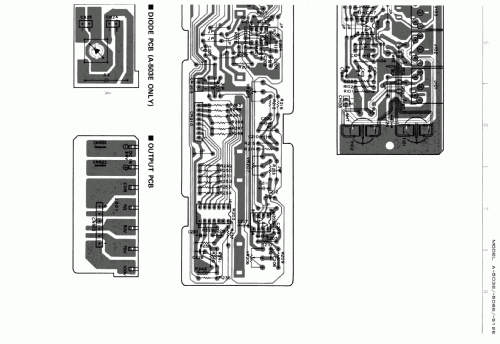

• Literature/Schematics (1)

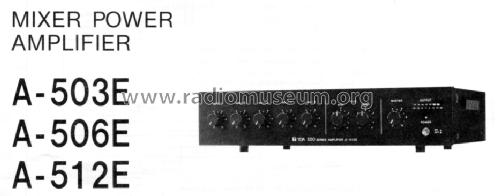

• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
