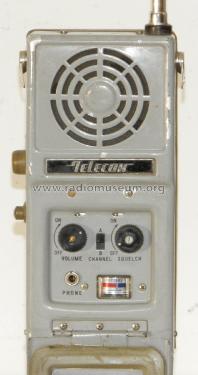

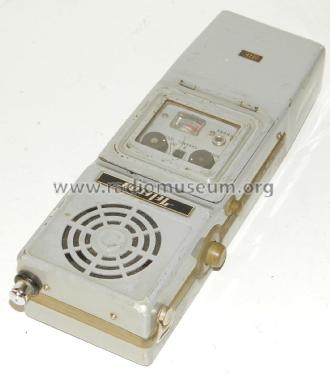

CB Transceiver MZK Telecon

Toa Musen Company Ltd. (Telecon); Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1960 ?
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 317579

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 455 kHz
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • 2 x 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: CB Transceiver MZK Telecon - Toa Musen Company Ltd. Telecon
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 85 x 245 x 53 mm / 3.3 x 9.6 x 2.1 inch
  • Notes

  • Handheld radio for the 11 m CB band.
    Two channels, quartz control (plug-in quartz), amplitude modulation.
    Approval FTZ no. 308/60

    Handsprechfunkgerät für das 11 m-CB-Band.
    Zwei Kanäle, Quarzsteuerung (Steckquarze), Amplitudenmodulation.
    Zulassung FTZ-Nr. 308/60

  • Net weight (2.2 lb = 1 kg)
  • 0.710 kg / 1 lb 9 oz (1.564 lb)
  • Author
  • Model page created by Siegfried Droese. See "Data change" for further contributors.
