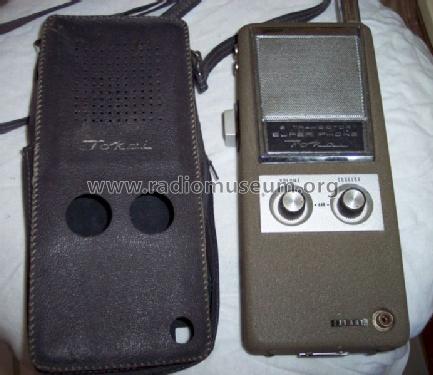

12 Transistor Super Phone TC-130
Tokai Wireless Co.,Ltd., Tokyo
- Country
- Japan
- Manufacturer / Brand
- Tokai Wireless Co.,Ltd., Tokyo
- Year
- 1966 ?
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 225796
-
- Brand: Million
Ebay auction by user dragnetto 330817358586
Ebay auction by user dragnetto 330817358586
Ebay auction by user dragnetto 330817358586
Ebay auction by user dragnetto 330817358586
- Number of Transistors
- 12
- Semiconductors
- Main principle
- Transceiver; ZF/IF 455 kHz
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Storage and/or dry batteries / 8 × 1.5 or 8 × 1.2 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.18 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: 12 Transistor Super Phone TC-130 - Tokai Wireless Co.,Ltd., Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 90 x 210 x 40 mm / 3.5 x 8.3 x 1.6 inch
- Notes
-
Sender: 2-stufig, quarzgesteuert, Sendefrequenz 1 Kanal im Bereich 26,965–27,275 MHz. Gleichstromeingangsleistung 200 mW; Amplitudenmodulation A3.
Empfänger: Superhet mit Vorstufe, Störbegrenzer und regelbare Rauschsperre, Schwundausgleich auf 2 Stufen wirkend.
Eingebaute Teleskopantenne 137 mm; externe Antenne und externe 12-V-Stromversorgung möglich.
- Net weight (2.2 lb = 1 kg)
- 1 kg / 2 lb 3.2 oz (2.203 lb)
- Price in first year of sale
- 598.00 DM
- Mentioned in
- Bauer Katalog, 1966
- Author
- Model page created by a member from A. See "Data change" for further contributors.
