• Country
• Japan

• Manufacturer / Brand
• Tokai Wireless Co.,Ltd., Tokyo

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 284212

• • Brand: Million

• Number of Transistors
• 6

• Semiconductors
• 2S30 2S31 2S31 2S32 2S32 2S32 1NA4G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

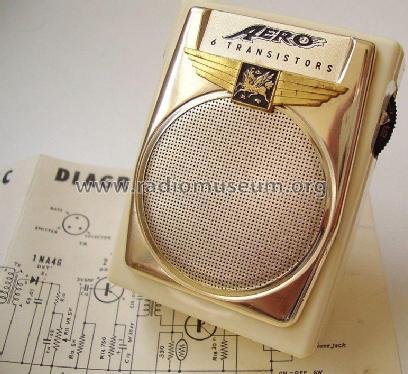

• Model: Aero - 6 Transistors G-607 - Tokai Wireless Co.,Ltd., Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.5 x 3 x 1.5 inch / 64 x 76 x 38 mm

• Author
• Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.

• Other Models

• Here you find 91 models, 85 with images and 24 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
