• Country
• Japan

• Manufacturer / Brand
• Tokai Wireless Co.,Ltd., Tokyo

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107867

• • Brand: Million

• Number of Transistors
• 9

• Semiconductors
• 2SA235 2SA235 2SA350 2SA350 2SA350 2SB75 2SB75 2SB77 2SA77

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

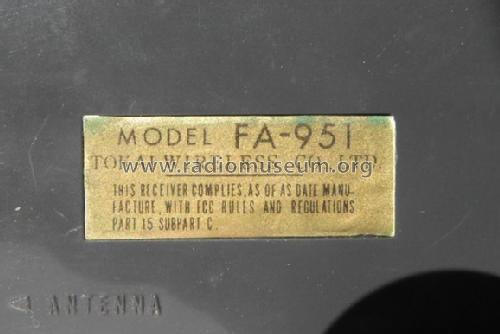

• Model: 9 Transistor FA-951 - Tokai Wireless Co.,Ltd., Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 5.5 x 3 x 1.5 inch / 140 x 76 x 38 mm

• Notes
• Tokai FA-951 portable radio with leather case and detachable rod antenna, comes in different cabinet colors, additional 5 Diodes.

• Net weight (2.2 lb = 1 kg)
• 0.430 kg / 0 lb 15.2 oz (0.947 lb)

• Price in first year of sale
• 159.00 DM

• Mentioned in
• -- Collector info (Sammler)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.

• Other Models

• Here you find 91 models, 85 with images and 24 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
