• Country
• Japan

• Manufacturer / Brand
• Tokai Wireless Co.,Ltd., Tokyo

• Year
• 1970 ??

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 202917

• • Brand: Million

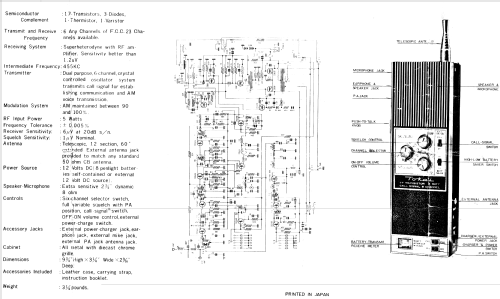

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Transceiver; ZF/IF 455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Dry Batteries / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

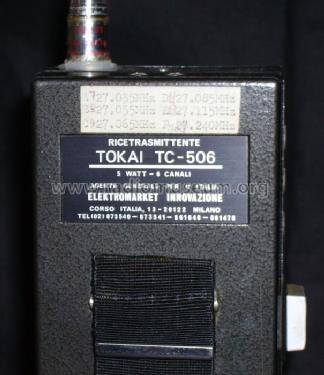

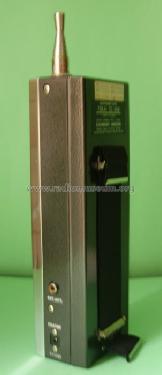

• Model: Portable TC-506 - Tokai Wireless Co.,Ltd., Tokyo

• Dimensions (WHD)
• 9 x 3 x 2 inch / 229 x 76 x 51 mm

• Notes
• 6 channels CB transceiver

• Net weight (2.2 lb = 1 kg)
• 3.25 lb (3 lb 4 oz) / 1.476 kg

• Source of data
• -- Original prospect or advert

• Mentioned in
• - - Data from my own collection

• Author
• Model page created by Stefano Cerchi. See "Data change" for further contributors.
