• Country
• Japan

• Manufacturer / Brand
• Tokai Wireless Co.,Ltd., Tokyo

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 286407

• • Brand: Million

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

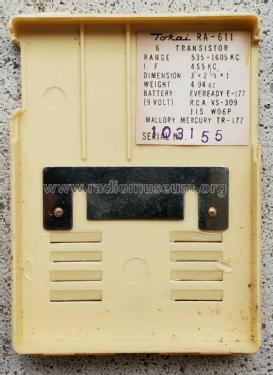

• Model: 6 Transistor RA 611 - Tokai Wireless Co.,Ltd., Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 56 x 77 x 27 mm / 2.2 x 3 x 1.1 inch

• Net weight (2.2 lb = 1 kg)
• 0.150 kg / 0 lb 5.3 oz (0.33 lb)

• Price in first year of sale
• 49.00 CHF

• Mentioned in
• Collector's Guide To TrR1 Bunis trans.94 (1996, page 275)

• Author
• Model page created by Marc Gianella. See "Data change" for further contributors.

• Other Models

• Here you find 91 models, 85 with images and 24 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
